LS 澆結金屬正齒輪
| 半標準產品 | 目錄號碼 | 模數 | 齒牙數目 |
內徑 A |
內徑2 A' |
套徑 B |
節距直徑 C |
外徑 D |
齒寬 E |
套寬 F |
總長 G |
腹板厚度 H |
平底擴孔銑深度 I |
腹板外徑 J |

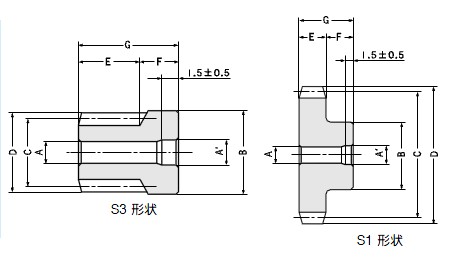

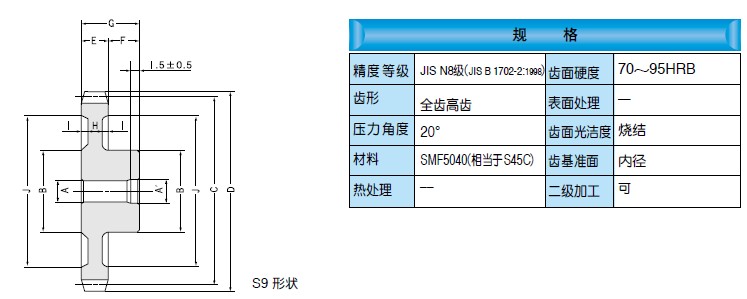

形狀 |
可容許扭矩(kgf·m) 扭曲強力 |
可容許扭矩(kgf·m) 齒面耐久性 |
可容許扭矩(N·m) 扭曲強力 |
可容許扭矩(N·m) 齒面耐久性 |
齒隙下限 | 齒隙上限 |
重量 (kg) |
單價 | 目錄號碼 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LS0.5-12 | 0.5 | 12 | 2 | 2.1 | 7.4 | 6 | 7 | 4 | 3 | 7 | S3 | 0.0143 | 0.0008 | 0.1407 | 0.0078 | 0.06 | 0.16 | 0.002 | LS0.5-12 | |||||
| LS0.5-16 | 0.5 | 16 | 2 | 2.1 | 9.4 | 8 | 9 | 4 | 3 | 7 | S3 | 0.0231 | 0.0015 | 0.2262 | 0.0145 | 0.06 | 0.16 | 0.002 | LS0.5-16 | |||||
| LS0.5-20 | 0.5 | 20 | 3 | 3.1 | 11.4 | 10 | 11 | 4 | 4 | 8 | S3 | 0.0324 | 0.0024 | 0.3176 | 0.0232 | 0.06 | 0.16 | 0.004 | LS0.5-20 | |||||
| LS0.5-25 | 0.5 | 25 | 3 | 3.1 | 8.5 | 12.5 | 13.5 | 3 | 4 | 7 | S1 | 0.0334 | 0.0028 | 0.3278 | 0.0272 | 0.1 | 0.2 | 0.004 | LS0.5-25 | |||||
| LS0.5-30 | 0.5 | 30 | 3 | 3.1 | 9 | 15 | 16 | 3 | 4 | 7 | S1 | 0.0429 | 0.004 | 0.4203 | 0.0396 | 0.1 | 0.2 | 0.005 | LS0.5-30 | |||||
| LS0.5-40 | 0.5 | 40 | 3 | 3.1 | 9 | 20 | 21 | 3 | 4 | 7 | 1.5 | 0.75 | 16.5 | S9 | 0.0623 | 0.0073 | 0.611 | 0.0715 | 0.1 | 0.2 | 0.006 | LS0.5-40 | ||
| LS0.5-50 | 0.5 | 50 | 4 | 4.1 | 12 | 25 | 26 | 3 | 5 | 8 | 1.5 | 0.75 | 21.5 | S9 | 0.0822 | 0.0117 | 0.8062 | 0.1144 | 0.12 | 0.24 | 0.01 | LS0.5-50 | ||
| LS0.5-60 | 0.5 | 60 | 4 | 4.1 | 12 | 30 | 31 | 3 | 5 | 8 | 1.5 | 0.75 | 26.5 | S9 | 0.1024 | 0.0172 | 1.0042 | 0.1682 | 0.12 | 0.24 | 0.014 | LS0.5-60 | ||
| LS0.5-70 | 0.5 | 70 | 4 | 4.1 | 12 | 35 | 36 | 3 | 5 | 8 | 1.5 | 0.75 | 31.5 | S9 | 0.1228 | 0.0237 | 1.204 | 0.2329 | 0.12 | 0.24 | 0.016 | LS0.5-70 | ||
| LS0.5-80 | 0.5 | 80 | 4 | 4.1 | 12 | 40 | 41 | 3 | 5 | 8 | 1.5 | 0.75 | 36.5 | S9 | 0.1433 | 0.0315 | 1.4051 | 0.3089 | 0.12 | 0.24 | 0.02 | LS0.5-80 | ||
| 半標準項目 | 目錄號碼 | 模數 | 齒牙數目 |
內徑 A |
內徑2 A' |
套徑 B |
節距直徑 C |
外徑 D |
齒寬 E |
套寬 F |
總長 G |
腹板厚度 H |
平底擴孔銑深度 I |
腹板外徑 J |
形狀 |
可容許扭矩(kgf·m) 扭曲強力 |
可容許扭矩(kgf·m) 齒面耐久性 |
可容許扭矩(N·m) 扭曲強力 |
可容許扭矩(N·m) 齒面耐久性 |
齒隙下限 | 齒隙上限 |
重量 (kg) |
單價 | 目錄號碼 |
| LS0.8-12 | 0.8 | 12 | 3 | 3.1 | 11.6 | 9.6 | 11.2 | 5 | 4 | 9 | S3 | 0.0459 | 0.0027 | 0.4501 | 0.026 | 0.06 | 0.16 | 0.004 | LS0.8-12 | |||||
| LS0.8-16 | 0.8 | 16 | 3 | 3.1 | 8 | 12.8 | 14.4 | 4 | 4 | 8 | S1 | 0.0591 | 0.0039 | 0.5792 | 0.0381 | 0.06 | 0.16 | 0.004 | LS0.8-16 | |||||
| LS0.8-20 | 0.8 | 20 | 3 | 3.1 | 9 | 16 | 17.6 | 4 | 4 | 8 | S1 | 0.0829 | 0.0061 | 0.8131 | 0.0603 | 0.06 | 0.16 | 0.006 | LS0.8-20 | |||||
| LS0.8-25 | 0.8 | 25 | 3 | 3.1 | 9 | 20 | 21.6 | 4 | 4 | 8 | S1 | 0.1141 | 0.0097 | 1.1189 | 0.0953 | 0.1 | 0.2 | 0.01 | LS0.8-25 | |||||
| LS0.8-30 | 0.8 | 30 | 4 | 4.1 | 12 | 24 | 25.6 | 4 | 5 | 9 | S1 | 0.1463 | 0.0143 | 1.4348 | 0.1398 | 0.1 | 0.2 | 0.016 | LS0.8-30 | |||||
| LS0.8-40 | 0.8 | 40 | 4 | 4.1 | 12 | 32 | 33.6 | 4 | 5 | 9 | 2 | 1 | 26.4 | S9 | 0.2127 | 0.0262 | 2.0855 | 0.2569 | 0.1 | 0.2 | 0.02 | LS0.8-40 | ||
| LS0.8-50 | 0.8 | 50 | 4 | 4.1 | 12 | 40 | 41.6 | 4 | 5 | 9 | 2 | 1 | 34.4 | S9 | 0.2806 | 0.042 | 2.7519 | 0.4118 | 0.12 | 0.24 | 0.026 | LS0.8-50 | ||
| LS0.8-60 | 0.8 | 60 | 4 | 4.1 | 12 | 48 | 49.6 | 4 | 5 | 9 | 2 | 1 | 42.4 | S9 | 0.3495 | 0.0617 | 3.4278 | 0.6048 | 0.12 | 0.24 | 0.036 | LS0.8-60 | ||
| LS0.8-70 | 0.8 | 70 | 5 | 5.1 | 15 | 56 | 57.6 | 4 | 6 | 10 | 2 | 1 | 50.4 | S9 | 0.4191 | 0.0853 | 4.1098 | 0.8362 | 0.12 | 0.24 | 0.048 | LS0.8-70 | ||
| LS0.8-80 | 0.8 | 80 | 5 | 5.1 | 15 | 64 | 65.6 | 4 | 6 | 10 | 2 | 1 | 58.4 | S9 | 0.4891 | 0.1128 | 4.7961 | 1.1062 | 0.12 | 0.24 | 0.06 | LS0.8-80 |
